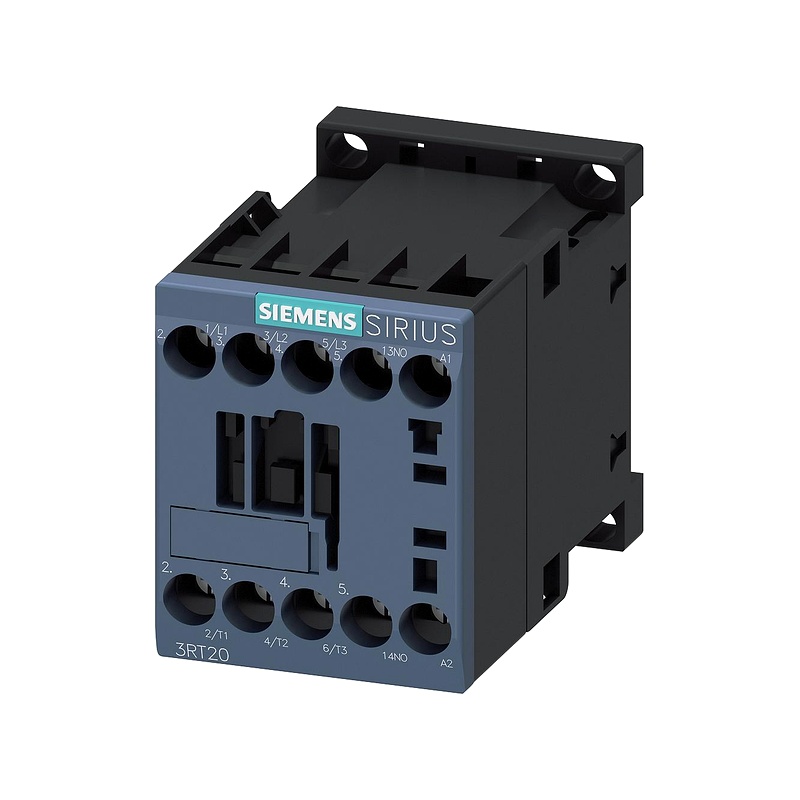

![3RT2018-1AP01-2AA0 - Contactor Siemens](http://mtee.vn/wp-content/uploads/2024/05/G_NSA0_XX_00822i.jpg)
Power contactor, AC-3e/AC-3, 16 A, 7.5 kW / 400 V, 3-pole, 230 V AC, 50/60 Hz, auxiliary contacts: 1 NO, screw terminal, size: S00, suspended mounting position | ||
Product brand name | SIRIUS | |
Product designation | Power contactor | |
Product type designation | 3RT2 | |
General technical data | ||
Size of contactor | S00 | |
Product extension | ||
● function module for communication | No | |
● auxiliary switch | Yes | |
Power loss [W] for rated value of the current | ||
● at AC in hot operating state | 3 W | |
● at AC in hot operating state per pole | 1 W | |
● without load current share typical | 1.5 W | |
Type of calculation of power loss depending on pole | Quadratic | |
Insulation voltage | ||
● of main circuit with degree of pollution 3 rated value | 690 V | |
● of auxiliary circuit with degree of pollution 3 rated value | 690 V | |
Surge voltage resistance | ||
● of main circuit rated value | 6 kV | |
● of auxiliary circuit rated value | 6 kV | |
Maximum permissible voltage for protective separation between coil and main contacts according to EN 60947-1 | 400 V | |
Shock resistance at rectangular impulse | ||
● at AC | 7,3g / 5 ms, 4,7g / 10 ms | |
Shock resistance with sine pulse | ||
● at AC | 11,4g / 5 ms, 7,3g / 10 ms | |
Mechanical service life (operating cycles) | ||
● of contactor typical | 30 000 000 | |
● of the contactor with added electronically optimized auxiliary switch block typical | 5 000 000 | |
● of the contactor with added auxiliary switch block typical | 10 000 000 | |
Reference code according to IEC 81346-2 | Q | |
Substance Prohibitance (Date) | 10/01/2009 | |
Ambient conditions | ||
Installation altitude at height above sea level maximum | 2 000 m | |
Ambient temperature | ||
● during operation | -25 … +60 °C | |
● during storage | -55 … +80 °C | |
Relative humidity minimum | 10 % | |
Relative humidity at 55 °C according to IEC 60068-2-30 maximum | 95 % | |
Environmental footprint | ||
Environmental Product Declaration(EPD) | Yes | |
Global Warming Potential [CO2 eq] total | 39.6 kg | |
Global Warming Potential [CO2 eq] during manufacturing | 1.18 kg | |
Global Warming Potential [CO2 eq] during operation | 38.5 kg | |
Global Warming Potential [CO2 eq] after end of life | -0.155 kg | |
Main circuit | ||
Number of poles for main current circuit | 3 | |
Number of NO contacts for main contacts | 3 | |
Operating voltage | ||
● at AC-3 rated value maximum | 690 V | |
● at AC-3e rated value maximum | 690 V | |
Operational current | ||
● at AC-1 at 400 V at ambient temperature 40 °C rated value | 22 A | |
● at AC-1 | ||
— up to 690 V at ambient temperature 40 °C rated value | 22 A | |
— up to 690 V at ambient temperature 60 °C rated value | 20 A | |
● at AC-3 | ||
— at 400 V rated value | 16 A | |
— at 500 V rated value | 12.4 A | |
— at 690 V rated value | 8.9 A | |
● at AC-3e | ||
— at 400 V rated value | 16 A | |
— at 500 V rated value | 12.4 A | |
— at 690 V rated value | 8.9 A | |
● at AC-4 at 400 V rated value | 11.5 A | |
● at AC-5a up to 690 V rated value | 19.4 A | |
● at AC-5b up to 400 V rated value | 13.2 A | |
● at AC-6a | ||
— up to 230 V for current peak value n=20 rated value | 9.6 A | |
— up to 400 V for current peak value n=20 rated value | 9.6 A | |
— up to 500 V for current peak value n=20 rated value | 9.6 A | |
— up to 690 V for current peak value n=20 rated value | 8.9 A | |
● at AC-6a | ||
— up to 230 V for current peak value n=30 rated value | 6.6 A | |
— up to 400 V for current peak value n=30 rated value | 6.4 A | |
— up to 500 V for current peak value n=30 rated value | 6.4 A | |
— up to 690 V for current peak value n=30 rated value | 6.4 A | |
Minimum cross-section in main circuit at maximum AC-1 rated value | 4 mm² | |
Operational current for approx. 200000 operating cycles at AC-4 | ||
● at 400 V rated value | 5.5 A | |
● at 690 V rated value | 4.4 A | |
Operational current | ||
● at 1 current path at DC-1 | ||
— at 24 V rated value | 20 A | |
— at 60 V rated value | 20 A | |
— at 110 V rated value | 2.1 A | |
— at 220 V rated value | 0.8 A | |
— at 440 V rated value | 0.6 A | |
— at 600 V rated value | 0.6 A | |
● with 2 current paths in series at DC-1 | ||
— at 24 V rated value | 20 A | |
— at 60 V rated value | 20 A | |
— at 110 V rated value | 12 A | |
— at 220 V rated value | 1.6 A | |
— at 440 V rated value | 0.8 A | |
— at 600 V rated value | 0.7 A | |
● with 3 current paths in series at DC-1 | ||
— at 24 V rated value | 20 A | |
— at 60 V rated value | 20 A | |
— at 110 V rated value | 20 A | |
— at 220 V rated value | 20 A | |
— at 440 V rated value | 1.3 A | |
— at 600 V rated value | 1 A | |
● at 1 current path at DC-3 at DC-5 | ||
— at 24 V rated value | 20 A | |
— at 60 V rated value | 0.5 A | |
— at 110 V rated value | 0.15 A | |
● with 2 current paths in series at DC-3 at DC-5 | ||
— at 24 V rated value | 20 A | |
— at 60 V rated value | 5 A | |
— at 110 V rated value | 0.35 A | |
● with 3 current paths in series at DC-3 at DC-5 | ||
— at 24 V rated value | 20 A | |
— at 60 V rated value | 20 A | |
— at 110 V rated value | 20 A | |
— at 220 V rated value | 1.5 A | |
— at 440 V rated value | 0.2 A | |
— at 600 V rated value | 0.2 A | |
Operating power | ||
● at AC-2 at 400 V rated value | 7.5 kW | |
● at AC-3 | ||
— at 230 V rated value | 4 kW | |
— at 400 V rated value | 7.5 kW | |
— at 500 V rated value | 7.5 kW | |
— at 690 V rated value | 7.5 kW | |
● at AC-3e | ||
— at 230 V rated value | 4 kW | |
— at 400 V rated value | 7.5 kW | |
— at 500 V rated value | 7.5 kW | |
— at 690 V rated value | 7.5 kW | |
Operating power for approx. 200000 operating cycles at AC-4 | ||
● at 400 V rated value | 2.5 kW | |
● at 690 V rated value | 3.5 kW | |
Operating apparent power at AC-6a | ||
● up to 230 V for current peak value n=20 rated value | 3.8 kVA | |
● up to 400 V for current peak value n=20 rated value | 6.6 kVA | |
● up to 500 V for current peak value n=20 rated value | 8.3 kVA | |
● up to 690 V for current peak value n=20 rated value | 10.6 kVA | |
Operating apparent power at AC-6a | ||
● up to 230 V for current peak value n=30 rated value | 2.5 kVA | |
● up to 400 V for current peak value n=30 rated value | 4.4 kVA | |
● up to 500 V for current peak value n=30 rated value | 5.5 kVA | |
● up to 690 V for current peak value n=30 rated value | 7.6 kVA | |
Short-time withstand current in cold operating state up to 40 °C | ||
● limited to 1 s switching at zero current maximum | 300 A; Use minimum cross-section acc. to AC-1 rated value | |
● limited to 5 s switching at zero current maximum | 169 A; Use minimum cross-section acc. to AC-1 rated value | |
● limited to 10 s switching at zero current maximum | 128 A; Use minimum cross-section acc. to AC-1 rated value | |
● limited to 30 s switching at zero current maximum | 92 A; Use minimum cross-section acc. to AC-1 rated value | |
● limited to 60 s switching at zero current maximum | 74 A; Use minimum cross-section acc. to AC-1 rated value | |
No-load switching frequency | ||
● at AC | 10 000 1/h |
Xem thêm tại Datasheet
