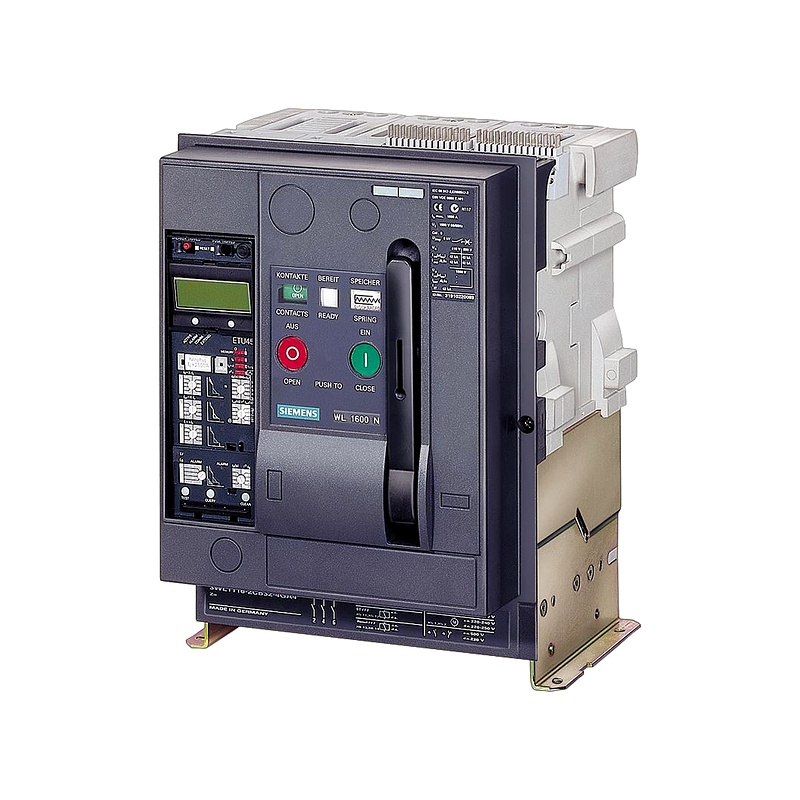

Máy cắt không khí Siemens 3WL1110-2FB46-4GA2 1000A 55kA 4P

 Tên sản phẩm: Máy cắt không khí Siemens 3WL1110-2FB46-4GA2 1000A 55kA 4P

 Thông số kỹ thuật:

withdrawable circuit breaker with guide frame 4-pole, size I, IEC In=1000A to 690V, AC50/60Hz Icu=55kA at 500V rear connection horizontal Overcurrent release ETU45 LSIN protection adjustable 0.4-1 in with display and cubicle bus Opt.: Comm. /measuring func./ground fault/ ZSS Motorized/manual operating mechanism with spring charging motor AC 50/60 Hz 208-240 V or 220-250 V DC Activation AC 50/60 Hz 230 V, 220 V DC With 1st auxiliary release Shunt release “F”, F1 50/60 Hz 230 V AC/220 V DC, 100% on-load factor without 2nd auxiliary release 2NO+2NC

Mã: 3WL1110-2FB46-4GA2 Danh mục:
